4-Pack SC/UPC Fiber Optic Pigtail, 1.2m 12 Strand Single Mode 9/125 Fiber Pigtail, 12 Color-Coded Fiber Patch Cords for Fusion Splicing
Product details
| Management number | 215170087 | Release Date | 2026/04/12 | List Price | $14.40 | Model Number | 215170087 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Duogalia 4-Pack SC/UPC Fiber Optic Pigtail, 1.2m 12 Strand SingleMode 9/125 Fiber Pigtail, 12 Color-Coded Fiber Patch Cords for Fusion Splicing
- 【Specifications】Fiber Type Singlemode 9/125μm; Connectors SC/UPC; 0.9 mm Tight Buffer, 1.2 Meter (3.9ft) Length. 12 strands color coded.
- 【Superior Performance】Low Insertion Loss & High Return Loss, This fiber optic pigtail Each insert performance is formance higher than standard requirements in the industry, good temperature stability.★ Insertion loss: UPC≤0.3dB; Return loss: UPC≥55dB.
- 【Precise Ceramic Ferrule】Adopt high quality zirconia ceramic ferrule, with better coaxiality and size precision. high quality porcelain bushing can provide low insertion loss and better durability;★ Removable outer jacket for tighter bend radius requirements or high density installations.

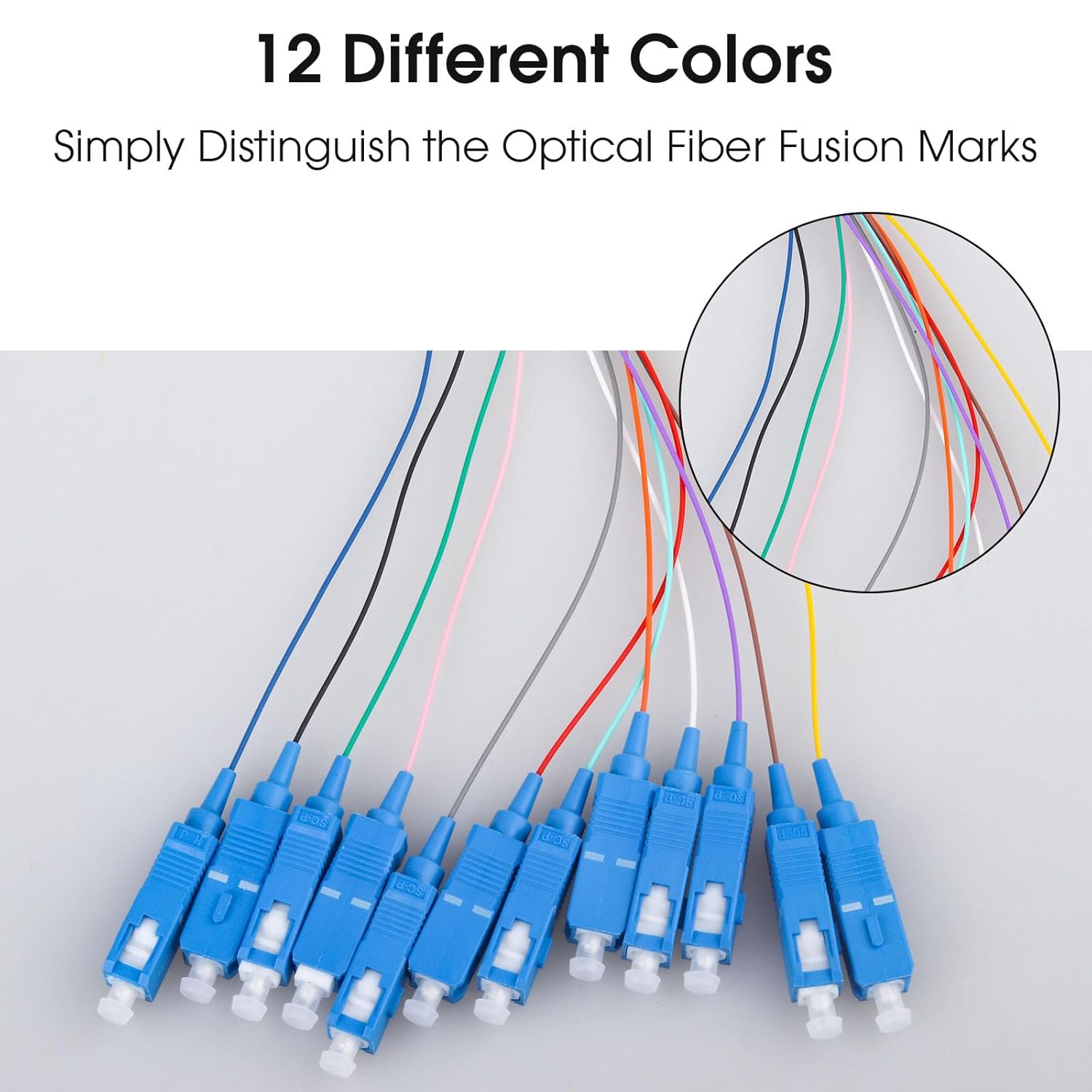

- 【Distinct Color Mark】 12 Strands Cable Individually color coded, easy to recognize. Saves installation time and prevents incorrect patching.★ Plug and Play: Environmentally Stable with strong compatibility.Very convenient in use. Conforms to industrial standard 100% optical test so as to ensure the reliability.

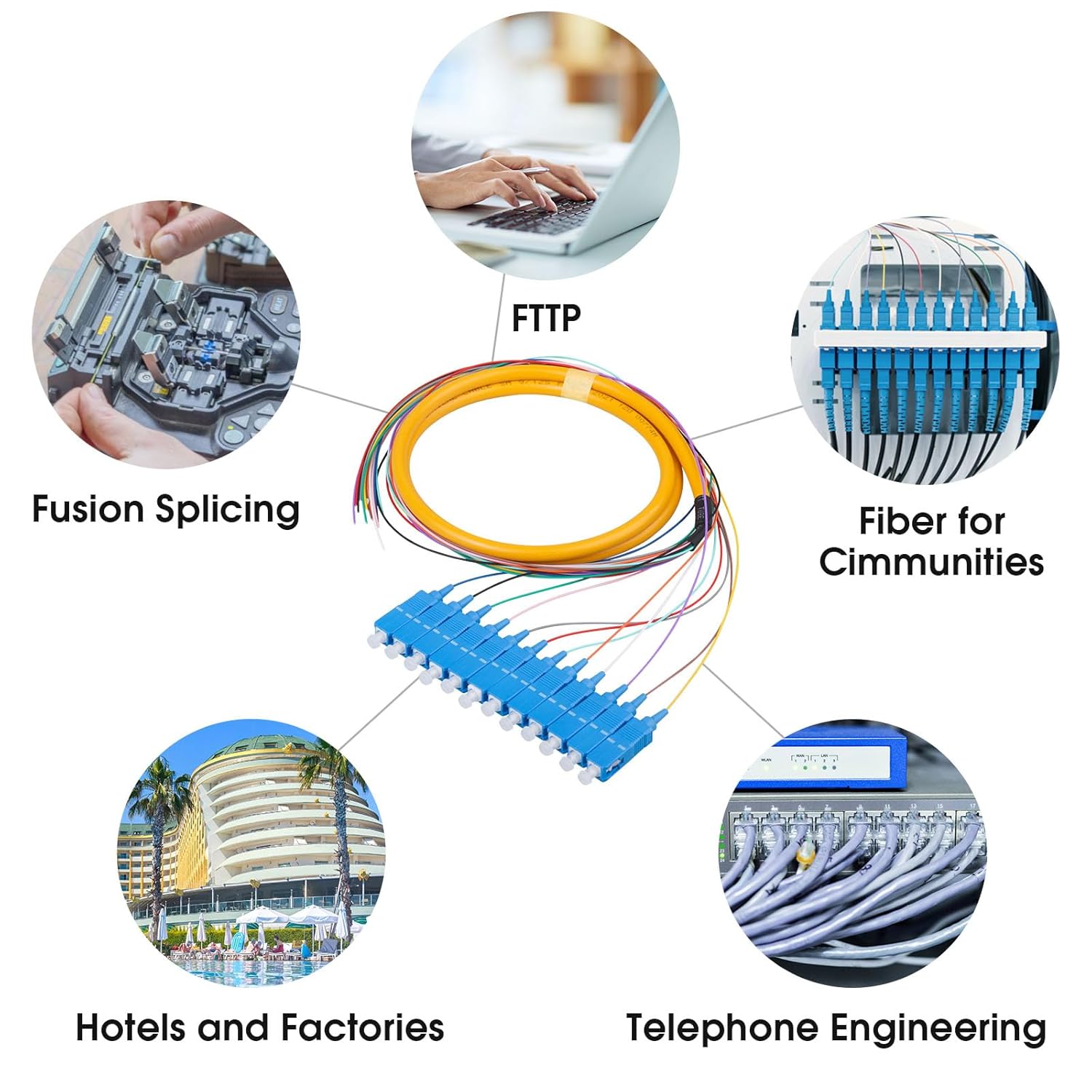

- 【Widely Used】Perfect for use in Data Centers, premise installations, Optical Fiber LAN, WAN, Telecommunication and Data Processing Networks CATV,instruments,Communication System.
| Model | SC-UPC-12M |
|---|---|
| Brand Name | Duogalia |
| Cable Type | Fiber Optic |
| Item Shape | Round |
| Unit Count | 4.0 Count |
| Manufacturer | Duogalia |
| Connector Type | Sc-upc |
| Number of Items | 4 |
| Connector Gender | Male-to-Male |
| Compatible Devices | Optic |
| Included Components | Fiber Optic Pigtail |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Customer Package Type | 4 |
| Compatible Phone Models | No Compatible Phone Models |
| Connectivity Technology | Optic |
| Recommended Uses For Product | Data Centers, Optical Fiber LAN/WAN, Telecommunication Networks, CATV |
| Other Special Features of the Product | SC-UPC |
